Z14 Nature

Z14 Nature is the most highly recommended option for businesses with high juice consumption. The capacity of its basket and of its peel containers provide it with great autonomy, a key factor for buffets, restaurants and the retail sector.
REF: Z14-NGP REF: Z14-NBR REF: Z14-NOR REF: Z14-NBE REF: Z14-N
Available Colours
Graphite
Brown
Orange
Beige

Measurements:

32.32”(h) x 18.82”(w) x 18.66”(l)

Weight:

143 lbs

Fruits/minute:

16

WARNING: Attention California Residents - Prop 65 Warning

This product can expose you to chemicals including bisphenol A, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Available Colours
Graphite
Brown
Orange
Beige
Z14 Nature is the most highly recommended option for businesses with high juice consumption. The capacity of its basket and of its peel containers provide it with great autonomy, a key factor for buffets, restaurants and the retail sector.
REF: Z14-NGP REF: Z14-NBR REF: Z14-NOR REF: Z14-NBE REF: Z14-N

Measurements:

32.32”(h) x 18.82”(w) x 18.66”(l)

Weight:

143 lbs

Fruits/minute:

16

Glasses/day:

150

WARNING: Attention California Residents - Prop 65 Warning

This product can expose you to chemicals including bisphenol A, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Do you want to know more about Z14 Nature for your business?

Technical Data

Filter Automatic filter

Fruits per Minute 16

Measurements 32.32”(h) x 18.82”(w) x 18.66”(l)

Motor Single phase 0,33 CV

Weight 143 lbs

Voltage 120 V – 60 Hz. 230 V – 50 Hz. 220 V – 60 Hz.

Basket Capacity 20 lb. Optional 35 lbs

Available Tubs 4

Fruit Diameter M: 2.16”- 2.95” / L: 2.75”- 3.54” Opt. 1.77″- 2.44″

Recommended Fruits Oranges, lemons, limes, tangerines, pomegranates, grapefruit

Available Squeezing Kits M: 2.16”- 2.95” / L: 2.75”- 3.54” Opt. 1.77″- 2.44″

Peel Collection 3.7 (2x 1.85) gal

Mode auto / manual

Programmer yes

Protection blocking sensors

Watch video play Ideal for businesses with high juice consumption

Ideal for businesses with high juice consumption

EVS system

EVS system

Unique vertical squeezing system, exclusive to Zummo, which, based on manual squeezing, allows for maximum profitability, thus obtaining the purest juice possible with the greatest functionality in its operation.

Squeezing kits of different sizes

Get the maximum yield from the squeezed fruit regardless of its diameter. You can squeeze all kinds of citrus fruits and pomegranates.

Squeezing kits of different sizes
Automatic filter

Automatic filter

Better squeezing performance and greater autonomy.

Creating moments of well-being
Creating moments of well-being

We are the ones who explore new ways of bringing fruit and vegetables into others’ lives.

Resources

ficha
Spec Sheet Z14-N
Financiación

Financing available

At Zummo, we help you to finance your machine and amortize it without realizing it

Compare products

VIVA

Basics

3.3 lb

Automatic filter

10

24.33”(h) x 12.92“(w) x 16.54”(l)

DC Motor 135W/0,18cv

76 lbs

-

-

100-240V 50/60Hz

Performance

-

-

M: 2,16¨-2,95¨ OPT: XS: 1,17¨-1,77¨ S: 1,64¨ - 2,36¨

Oranges, lemons, limes, tangerines, key limes

XS: 1.17″- 1.77″ S: 1.64”-2.36” M: 2.16”-2.95”

1.32 gal

Technology

auto / manual

yes

blocking sensors

-

-

Z06 Nature

Basics

3.3 lbs

Automatic filter

10

31.89”(h) x 21.33”(w) x 16.81”(l)

Single-phase 0,33 CV

112.4 lbs

-

-

100-240V 50/60Hz

Performance

13.23 lbs

4

M: 2,16¨-2,95¨ / L: OPT: S: 1,64¨ - 2,36¨

Oranges, lemons, limes, tangerines, pomegranates, grapefruit

M (2.16”-2.95”) L (2.75”-3.54”) / Optional: S (1.77”-2.36”)

5.81 gal

Technology

auto / manual

yes

blocking sensors

-

-

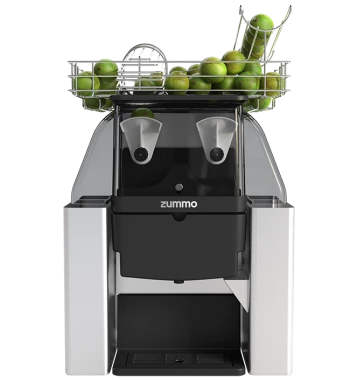

Z06 Nature Inox

Basics

3.3 lbs

Automatic filter

10

31.89”(h) x 19.84“(w) x 16.81”(l)

Single-phase 0,33 CV

119 lbs

-

-

100-240V 50/60Hz

Performance

13.23 lbs

4

M: 2,16¨-2,95¨ / L: OPT: S: 1,64¨ - 2,36¨

Oranges, lemons, limes, tangerines, pomegranates, grapefruit

M (2.16”-2.95”) L (2.75”-3.54”) / Optional: S (1.77”-2.36”)

5.81 gal

Technology

auto / manual

yes

blocking sensors

-

-

Z14 Nature

Basics

-

Automatic filter

16

32.32”(h) x 18.82”(w) x 18.66”(l)

Single phase 0,33 CV

143 lbs

-

-

120 V – 60 Hz. 230 V – 50 Hz. 220 V – 60 Hz.

Performance

20 lb. Optional 35 lbs

4

M: 2.16”- 2.95” / L: 2.75”- 3.54” Opt. 1.77″- 2.44″

Oranges, lemons, limes, tangerines, pomegranates, grapefruit

M: 2.16”- 2.95” / L: 2.75”- 3.54” Opt. 1.77″- 2.44″

3.7 (2x 1.85) gal

Technology

auto / manual

yes

blocking sensors

-

-

Z14 Nature INOX

Basics

-

Automatic filter

16

32.32”(h) x 18.82”(w) x 18.66”(l)

Single phase 0,33 CV

143 lbs.

-

-

120 V – 60 Hz. 230 V – 50 Hz. 220 V – 60 Hz.

Performance

21 lb. Optional 35 lbs

-

M: 2.16”- 2.95” / L: 2.75”- 3.54” Opt. 1.77″- 2.44″

Oranges, lemons, limes, tangerines, pomegranates, grapefruit

M: 2.16”- 2.95” / L: 2.75”- 3.54” Opt. 1.77″- 2.44″

3.7 (2x 1.85) gal

Technology

auto / manual

yes

blocking sensors

-

-

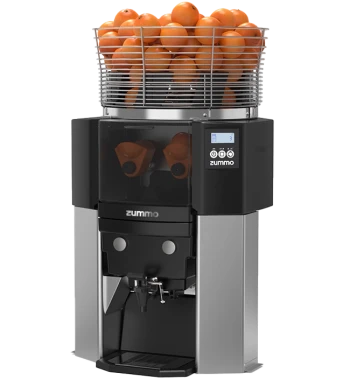

Z14 Nature Self-Service with chutes

Basics

-

Automatic filter

16

34,13”(h) x 18,82”(w) x 19,21”(l)

Monofasic 0,33 CV

129 lbs.

-

-

120 V – 60 Hz. 230 V – 50 Hz. 220 V – 60 Hz.

Performance

20 lb. Optional 35 lbs

-

M: 2.16”- 2.95” / L: 2.75”- 3.54” Opt. 1.77″- 2.44″

Oranges, lemons, limes, tangerines, pomegranates, grapefruit

M: 2.16”- 2.95” / L: 2.75”- 3.54” Opt. 1.77″- 2.44″

-

Technology

auto / manual

yes

blocking sensors

-

-

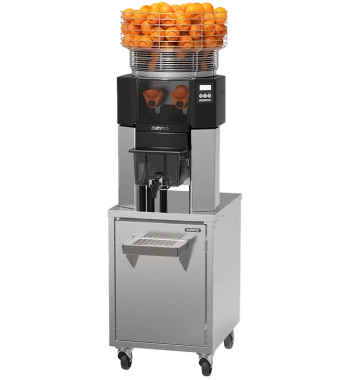

Z14 Service Cabinet

Basics

-

Automatic filter

16

36.85”(h) x 18.58”(w) x 19.21”(l)

Monofasic 0,33 CV

224 lbs

-

-

121 V – 60 Hz. 230 V – 50 Hz. 220 V – 60 Hz.

Performance

20 lbs Opt. 35 lbs

-

M: 2.16”- 2.95” / L: 2.75”- 3.54” Opt. 1.77″- 2.44″

Oranges, lemons, limes, tangerines, pomegranates, grapefruit

M: 2.16”- 2.95” / L: 2.75”- 3.54” Opt. 1.77″- 2.44″

1 5gal capacity

Technology

auto / manual

yes

blocking sensors

-

-

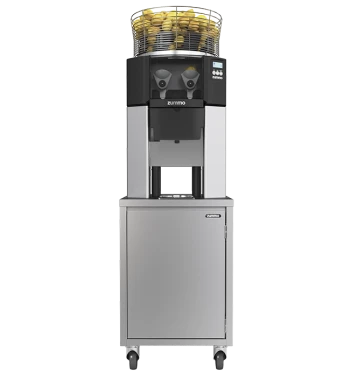

Z14 Cabinet

Basics

-

Automatic filter

16

63”(h) x 19.7” (w) x 30.11” (l)

Monofasic 0,33 CV

218.7 lbs

-

-

121 V – 60 Hz. 230 V – 50 Hz. 220 V – 60 Hz.

Performance

20 lbs Opt. 35 lbs

-

M: 2.16”- 2.95” / L: 2.75”- 3.54” Opt. 1.77″- 2.44″

Oranges, lemons, limes, tangerines, pomegranates, grapefruit

M: 2.16”- 2.95” / L: 2.75”- 3.54” Opt. 1.77″- 2.44″

1 5gal capacity

Technology

auto / manual

yes

blocking sensors

-

-

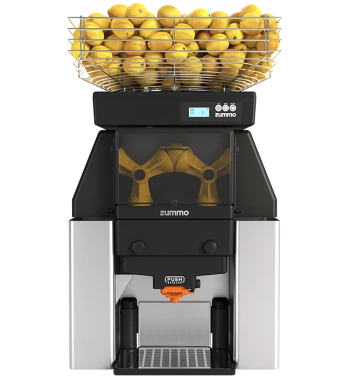

Z40 Nature Adapt

Basics

-

Automatic filter

40

38.58”(h) x 23.43“(w) x 21.65”(l)

Single-phase 0,5 CV

189.6 lbs

-

-

120 V – 60 Hz. 230 V – 50 Hz. 220 V – 60 Hz.

Performance

44 lbs

-

M: 2.1”-3” cup kit. Optional: 2.5”-3.5” L kit. 3”-4” XL kit 1.6”-2.4” S kit

Oranges, lemons, limes, tangerines, pomegranates, grapefruit

M: 2.1”-3” cup kit. Optional: 2.5”-3.5” L kit. 3”-4” XL kit 1.6”-2.4” S kit

7.93 gal (2 x3.96 gal)

Technology

auto / manual

yes

blocking sensors

-

-

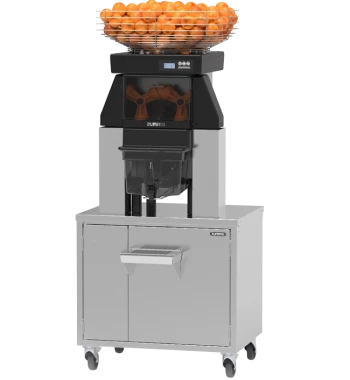

Z40 Nature Adapt Service Cabinet Plus

Basics

-

Automatic filter

40

69.3”(h) x 31.7“(w) x 30.11”(l)

Single-phase 0,5 CV

276.2 lbs

-

-

120 V – 60 Hz. 230 V – 50 Hz. 220 V – 60 Hz.

Performance

44 lbs

-

M: 2.1”-3” cup kit. Optional: 2.5”-3.5” L kit. 3”-4” XL kit 1.6”-2.4” S kit

Oranges, lemons, limes, tangerines, pomegranates, grapefruit

M: 2.1”-3” cup kit. Optional: 2.5”-3.5” L kit. 3”-4” XL kit 1.6”-2.4” S kit

29 gal

Technology

auto / manual

yes

blocking sensors

-

-

Z40 Nature Adapt Max Cabinet Plus

Basics

-

Automatic filter

40

69.33”(h) x 31.7“(w) x 23.62-26.73”(l)

Single-phase 0,5 CV

283.5 lbs

-

-

120 V – 60 Hz. 230 V – 50 Hz. 220 V – 60 Hz.

Performance

44 lbs

-

M: 2.1”-3” cup kit. Optional: 2.5”-3.5” L kit. 3”-4” XL kit 1.6”-2.4” S kit

Oranges, lemons, limes, tangerines, pomegranates, grapefruit

M: 2.1”-3” cup kit. Optional: 2.5”-3.5” L kit. 3”-4” XL kit 1.6”-2.4” S kit

17 gal (2×8.5 gal)

Technology

auto / manual

yes

blocking sensors

-

-

Z40 Nature Service Max Cabinet Plus

Basics

-

-

Automatic filter

-

40

-

69.33”(h) x 31.7“(w) x 23.62-26.73”(l)

-

Single-phase 0,5 CV

-

284 lbs

-

-

-

-

-

120 V – 60 Hz. 230 V – 50 Hz. 220 V – 60 Hz.

-

Performance

44 lbs

-

-

-

M: 2.1”-3” cup kit. Optional: 2.5”-3.5” L kit. 3”-4” XL kit 1.6”-2.4” S kit

-

Oranges, lemons, limes, tangerines, pomegranates, grapefruit

-

M: 2.1”-3” cup kit. Optional: 2.5”-3.5” L kit. 3”-4” XL kit 1.6”-2.4” S kit

-

17 gal (2×8.5 gal)

-

Technology

auto / manual

yes

blocking sensors

-

-
